Hitec HS-45HB AGTT Feather High Speed / Torque Servo 33045S HS45HB HS-45 HB
HomeStore

Hitec HS-45HB AGTT Feather High Speed / Torque Servo 33045S HS45HB HS-45 HB

Hitec HS-45HB AGTT Feather High Speed / Torque Servo 33045S HS45HB HS-45 HB

$32.00
Hitec HS-45HB AGTT Feather High Speed / Torque Servo 33045S HS45HB HS-45 HB—
$32.00

The Story

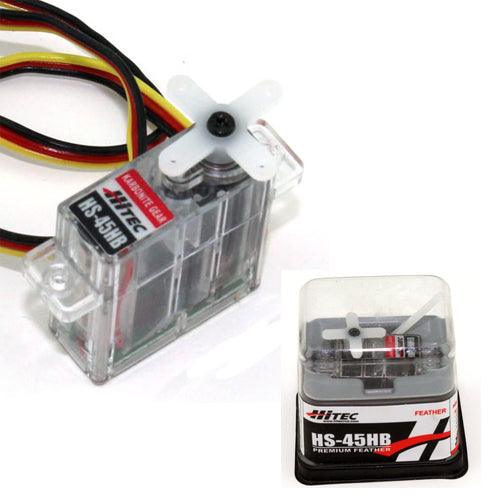

Hitec HS-45HB AGTT Feather Servo

Description:

Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.

Specifications:

  • Motor Type: 3 Pole
  • Bearing Type: Top Ball Bearing
  • Speed (4.8V/6.0V): 0.14 / 0.12 sec @ 60 deg.
  • Torque oz./in. (4.8V/6.0V): 14 / 17
  • Torque kg./cm. (4.8V/6.0V): 1.0 / 1.2
  • Size in Inches: 0.92 x 0.38 x 0.88
  • Size in Millimeters: 23.37 x 9.65 x 22.35
  • Weight ounces: 0.28
  • Weight grams: 7.94

Advanced Servo Specifications

  • Control System: +Pulse Width Control 1500usec Neutral
  • Operating Voltage Range: 4.8V - 6V
  • Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
  • Idle Current: 8mA
  • No Load Running Current (4.8V/6.0V): 100mA/60°
  • Stall Current (4.8V/6.0V): 440mA
  • Dead Band Width: 5usec
  • Potentiometer Type: 2 Slider/Direct Drive
  • Connector Wire Length: 250mm (9

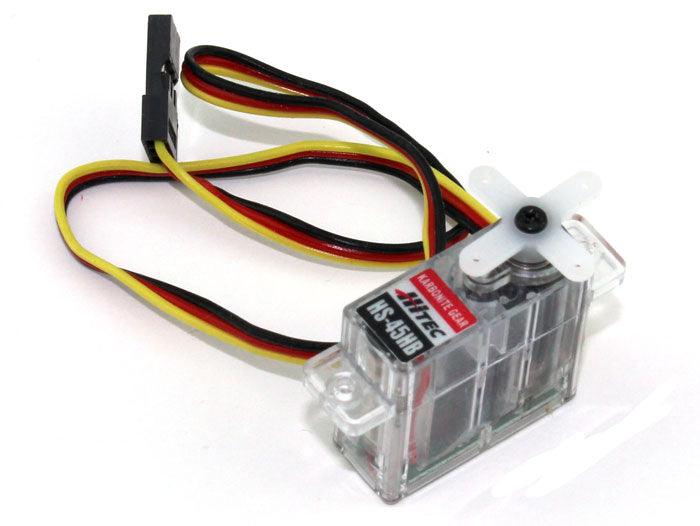

Hitec HS-45HB AGTT Feather High Speed / Torque Servo 33045S HS45HB HS-45 HB - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

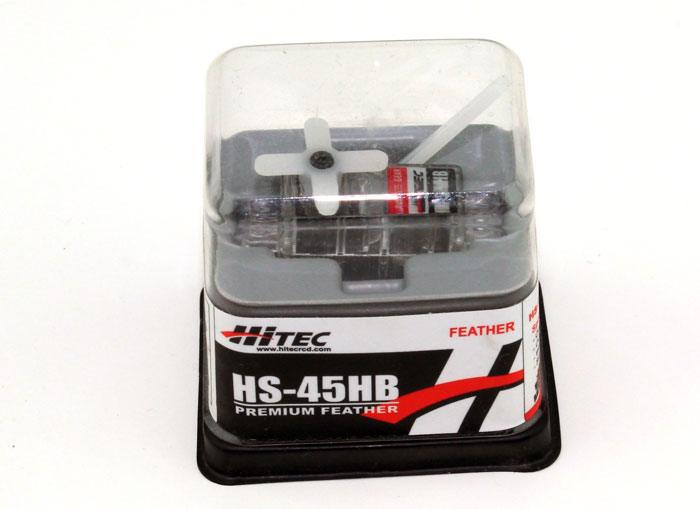

Hitec HS-45HB AGTT Feather High Speed / Torque Servo 33045S HS45HB HS-45 HB - Image 3
